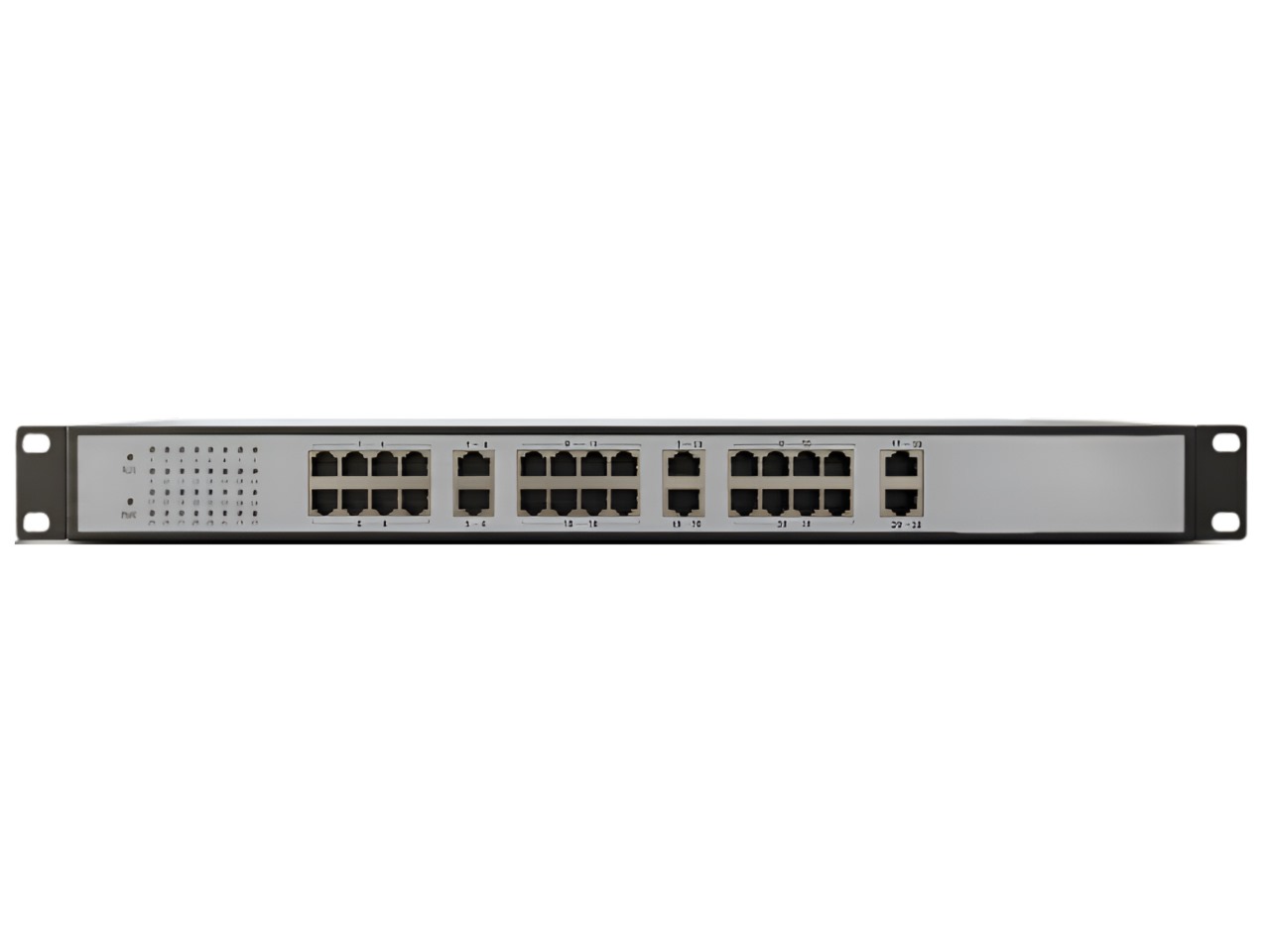

24 Port FXS Gateway

Specifications

MAG1000 Series Analog VoIP Gateway supports 24 ports of FXO/FXS port combination. With the features of exquisite enclosure and high performance, MAG series analog gateways are specially designed to save space and maximize cost savings.It is an excellent solution for the industry VoIP analog gateway.

It can be configured for different country uses, provides a wide selection of codecs including G.711A、G.711U、G.729、G.722、G.726、ILBC. The MAG Analog VoIP Gateways use standard SIP protocol and fully compatible with Leading IMS/NGN platform, IPPBX and SIP servers. It has obtained professional CE certification.

Technical Specifications:

Models	MAG1000-24
Ports	24 FXS ports
Port type	RJ11/RJ45(Standard) RJ21(Optional)

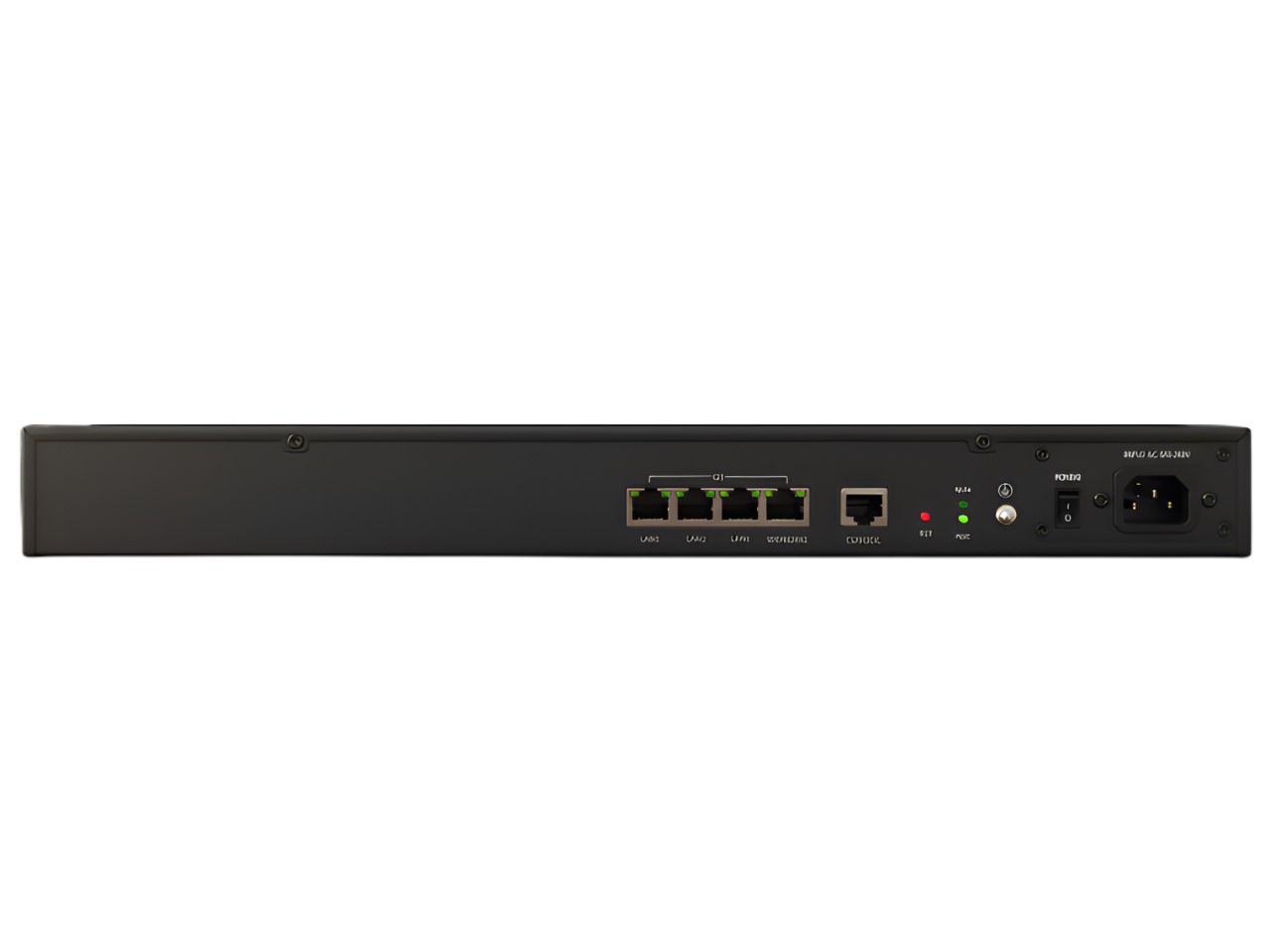

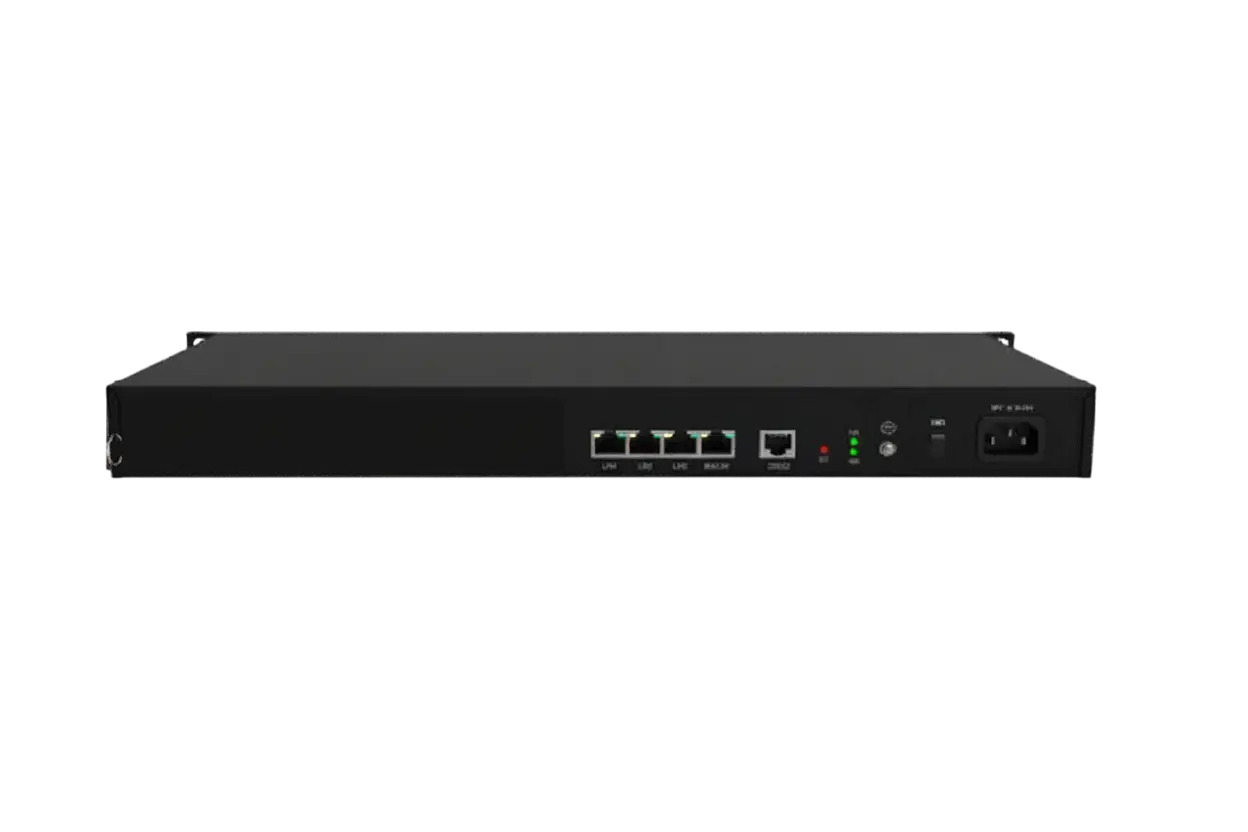

Ethernet Ports	2 * 10/100Mbps Ports
Console	RJ45
Dimension（bare）	44045220mm
Dimension（with packaging）	51090310mm
Weight（with packaging）	2.86kg	2.98kg	3.1kg
Maximum Power Consumption	20W	28W	36W
Power Supply	90-264VAC
Operation Temperature	0°C ~ 45°C
Operation Humidity Range	10% ~ 90% NON-CONDENSING
Storage Temperature Range	-20°C ~ 70°C
Short/Long Haul Ring Load	2 REN, up to 3km on 24AWG line
Certification	CE

Software & Platform:

Linux OS

Features
- Simple and convenient configuration via Web GUI
- Abundant Log Features, Automatically Reboot, Call status display
- Support English Language
- Open API interface（AMI）
- Support T.38 fax relay and T.30 fax transparent, FSK and DTMF signaling, can continually fax multiple pages
- Echo cancellation and Static jitter buffer
- Support DTMF relay
- Support Ring cadence and frequency setting
- Support Volume adjustment, Gain adjustment, call transfer, call hold, call waiting, call forward, Caller ID display
- Three-way calling, Call transfer, Dial-up matching table
- Support MWI(Message waiting indicator)
- Support DHCP、DNS/DDNS、NAT networking
- Support diverse SIP protocols
- Diverse extensible applications, such as DISA
- Support NTP time synchronization and client time synchronization
- Support modify username and password for web login
- Support SSH remote operation
- Support add, modify & delete SIP Accounts ,batch add, modify & delete SIP Accounts
- Support multiple SIP registrations: Anonymous, Endpoint registers with this gateway, This gateway registers with the endpoint
- SIP accounts can be registered to multiple servers
- Support update firmware online
- Support configuration file backup and upload
- Support for custom scripts, dialplans
- Support restore the factory settings
- Network type：Static IP, Dynamic
- Telnet, HTTP, HTTPS, SSH, TFTP, FTP
- VPN clients：PPTP/OpenVPN/Zerotier/L2TP/N2N（Not available for EAEU）
- Network Toolbox
- Affordable Price with Superior Performance
- Compatible with Asterisk, Issabel, 3CX, FreeSWITCH Sip Server and VOS VoIP operating platform
- Available for OEM
Download Brochure
PDF Manual
- AG1000-16S Series Analog Gateway Datasheet

24 Port FXS Gateway Today's growing businesses share voice communication across many areas in the 21st century. Many companies provide telecom services. But, AKOM Technologies has set itself apart in the market. We have been providing trusted services for over 10 years. We are providing cutting-edge technology devices. Not only effective communication services are important. For simple wire systems and trunk lines. 24 Port FXS Gateway plays a major role in a telecommunication service. Whether it is inside the company or in internal business. They connect businesses and organizations and offer unparalleled development. Our gateway comes with 24 channel capacity. The main purpose of the device is to work as a bridge between landline phones and IP-based networks. Devices such as phones, fax machines, and modems.

The functionality of24 Port FXS Gateway is it supports SIP trunk. It has a function of HOT dialing and self-switch. It has open SIP support and Open VPN band support of PPTP VPN and N2N VPN.

Our FXS product is the best VoIP solution for your industry. It provides power (voltage) to the telephone lines and avoids tangled wires. We provide the product with 32 Port FXS Gateway. It comes with in-built features into the device. It works according to the user's convenience.
